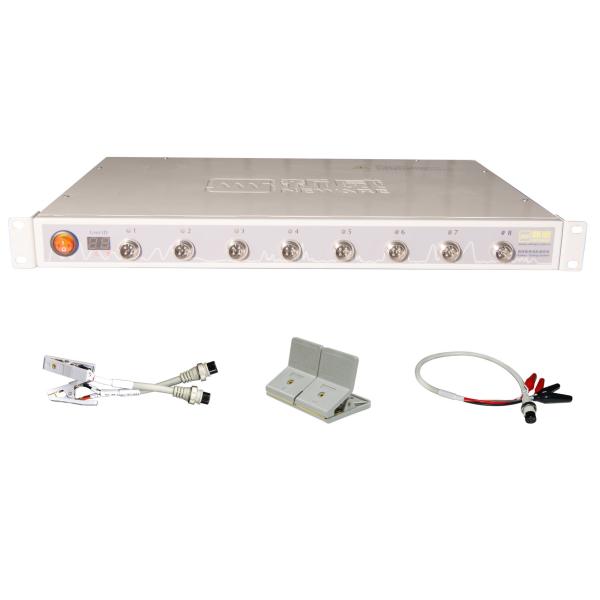

Neware 3.6V Cell Battery Cycler System TWS LIR854 Button Battery Tester
1 . Due to the rapid data acquisition frequency , BTS4000 could be applied to super capacitor or EDLC - Electronic Double Layer Capacitor - test . Through our advanced software, the capacitance, DCIR Direct Current Internal Resistance could be easily calculated .
2 . The lower range is able to output current low as 5uA , which can tell the subtle difference of various materials such electrodes , electrolyte , separator , etc .
3 . Generally , magnetoelectric galvanometer can achieve uA level , electromagnetic galvanometer can achieve mA level .
4 . Sensitive galvanometer is used for students to check weak current or tiny voltage in DC circuit in the lab . It is a kind of high sensitive magnetoelectric instrument , which can measure the tiny current .
5 . Higher Accuracy . More Cost - effective . We believe it can improve your battery test .
6 . Neware Battery Charge and Discharge Test System , ranging from μA single cell applications up to 1MW packs , is a high precision system designed specifically for testing lithium ion battery cells , modules , packs and capacitors . It is suitable for product development , quality control , and helpful to characteristic research , cycle life testing, product screening , and quality assessment .
7 . Want to use a battery tester for all kinds of purposes , wanna give it a shot with low risk , BTS4000 is very possibly the correct choice for you to get to know Neware and her battery test products better . Till year 2017 , 90% new customers of Neware would choose BTS4000 as a starting point , its really the time - proven and reliable choice .
| Data Recording | Record Frequency | 10Hz |
| Charge | Charge Mode | CCCharge , CVCharge , CCCVCharge , CPCharge |
| End Conditon | Voltage , Current , Relative Time , Capacity , -deltaV |
| Discharge | Discharge Mode | CCD , CPD , CRD |
| End Condition | Voltage , Current , Relative Time , Capacity |
| Pulse | charge | CCC , CPC |
| Discharge | CCD , CPD |
| Min Pulse Width | 500ms |
| Automated Switch | Automated swith from charge to discharge for each pulse |
| End Condition | Voltage, Test Time |
| Cycle | Loop Measure Range | 65535 times |
| Max Steps Per Loop | 254 |
| Nested Loop | Nested loop Function , Max Support 3 Layers |
